hot industrial de ionized static control air blower
◆ Product features
1, touch the switch button, easy and quick operation From Air Blower.
2. With multiple air outlets, produce a large number of ions.
3, with automatic needle brush function.
4. Automatically brush needles every 8 hours by default, eliminating manual cleaning and maintenance of needles.
5, five speed wind speed, stable performance.

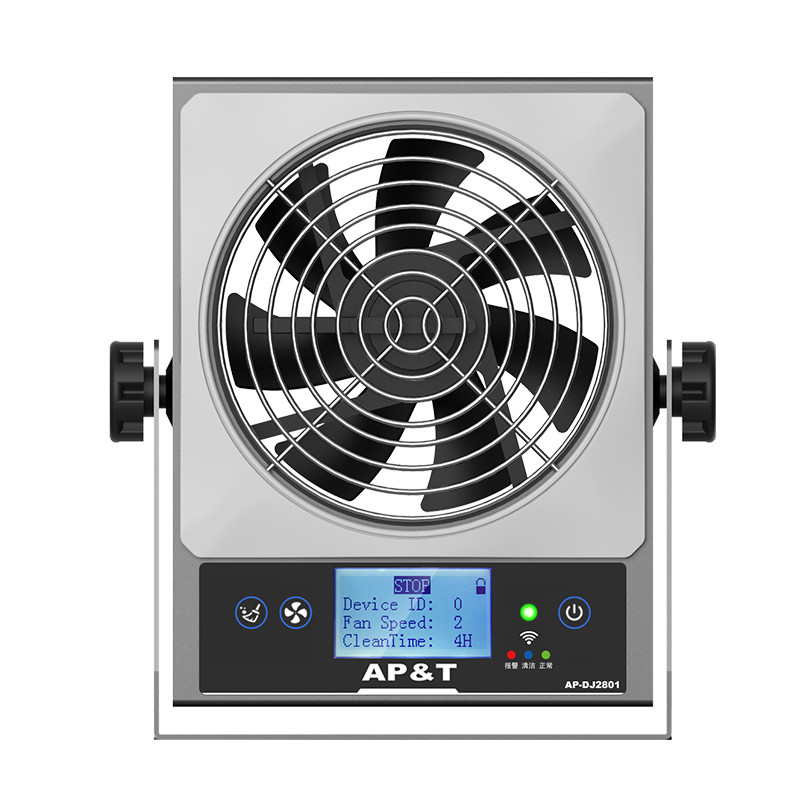

6, with liquid crystal display, can display equipment address, wind speed gear, cleaning cycle, as shown below:
7. When the fan fails and ion balance is abnormal, the red light will alarm.
8. The ion output characteristics of air blower can be adjusted remotely.
◆ Industry applications
Such Air Blower can be widely used in electronics, semiconductor, optoelectronics and other industries.
◆ Installation and use guide:
(1) Select the best heat dissipation position, and install the fan and the supporting power adapter firmly.
(2) Connect the power cable connected to the adapter to the RJ45 power socket of the eliminator , and connect the three-phase power socket to the power board.
(3) Gently touch the power switch on the front panel of the ion Blower. After the ion fan is turned on, the ion fan will brush the needle automatically. When the indicator light is green, the fan will work normally.
| Model No | AP-DJ2811 Air Blower |
| Input voltage | DC 24V (dual RJ45 interface) |
| Input current | <0.6A |
| Output voltage | DC±5KV→±5.5KV |
| Power | <14.5W |
| Ion emission | DC |
| Emitter electrode | Tungsten |
| Discharge range | 750*300mm(L*W) |
| Air volume | <179CFM |
| Noise | <75dBA(150mm from air outlet) |
| Ozone thickness | ≤0.05ppm(150mm from air outlet) |
| Ion balance | ≤|±10V| |
| Discharge speed | ≤1.5S(300mm from air outlet) |
| Alarm indication | Boot instant-blue light Normal working -Green light(Under monitoring) Fan alarm -Red light flash with beeping Ionization abnormal-Red light slow flash with beeping Blue light blinks when infrared debugging |
| Working temperature | 0℃-50℃ |
| Working humidity | <70%RH |
| Dimension | 177*81*205.5mm(L*W*H) |
| Power adaptor | 1. Interface power supply (default configuration): INPUT: AC100—240V 50 / 60Hz; OUTPUT: DC24V 2A (dual RJ45 interface) 2. Jack-type power supply (customized): INPUT: AC100—240V 50 / 60Hz; OUTPUT: DC24V 2A (5.5 * 2.5 single male head) |
| Integrated power supply (Optional) | INPUT:AC100—250V 50/60Hz OUTPUT: DC24V 2A (16 RJ45 interfaces) |
| Installation accessories | 1 pair of U-shaped aluminum powder spraying mounting bracket, 2 pairs of stainless steel screw handles (M5 × 8) |
| Weight | Bare metal (including bracket) 1125g |
| Net weight (network cable, power cord, adapter, remote control) 1590g |
| Gross weight 2080g |
| Price | Negotiated |
